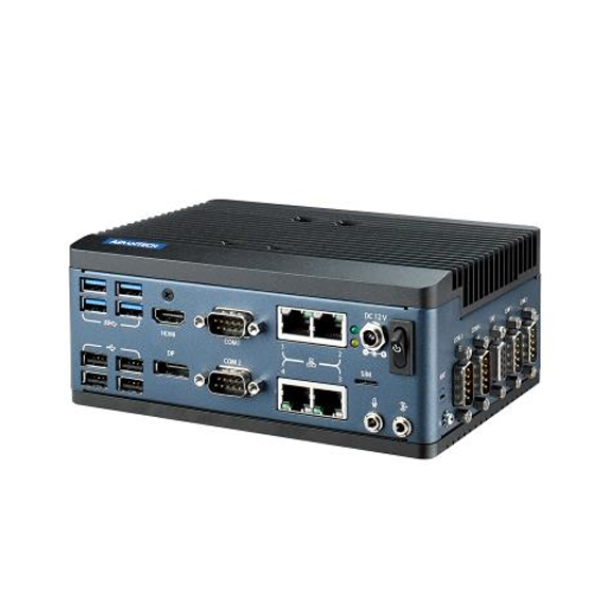

研华工控机EPC-C301

Intel 第八代 Core-U i5/i7掌上型无风扇嵌入式工控机搭载Intel® 第八代 Core-U系列四核CPU，TDP 15W超薄无风扇设计，支持DIN导轨和壁挂式固定支持HDMI+DP*（支持VAI MIO+）双显4 GbE，4 USB3.1，4 USB 2.0，CAN BUS，M.2 ...

规格书下载

在线订购

研华工控机EPC-C301特点

搭载Intel® 第八代 Core-U系列四核CPU，TDP 15W
超薄无风扇设计，支持DIN导轨和壁挂式固定
支持HDMI+DP*（支持VAI MIO+）双显
4 GbE，4 USB3.1，4 USB 2.0，CAN BUS，M.2 M-key 2280，12-24V宽压，M.2 E-key，M.2 B-key 3042，Minipcie
支持-20~60℃宽温
支持 iManager, SUSI API, DeviceOn 及 Edge AI 套件
无RED认证

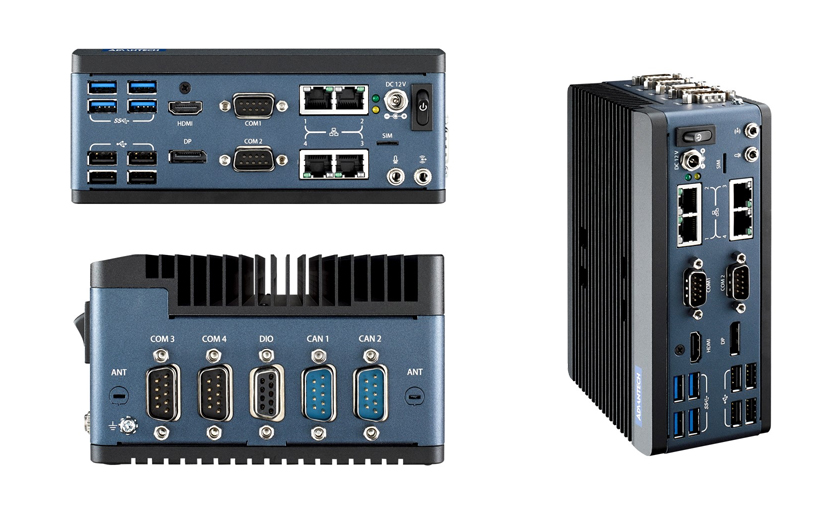

研华工控机EPC-C301

Processor

CPU

Intel® Core™ i7-8665UE
Intel® Core™ i5-8365UE

Max Turbo Frequency

4.4 GHz
4.1 GHz

Frequency

1.7 GHz
1.6 GHz

Thread

Core Number

LLC

CPU TDP

BIOS

AMI UEFI 256 Mbit
AMI UEFI 256 Mbit

Memory

Technology

DDR4 2400MHz SO-DIMM
DDR4 2400MHz SO-DIMM

Max. Capacity

Max. up to 32 GB (16 GB per SODIMM)
Max. up to 32 GB (16 GB per SODIMM)

Socket

2 x 260 Pin DDR4 SO-DIMM
2 x 260 Pin DDR4 SO-DIMM

Display

Controller

Integrated Intel® UHD Graphics 620
Integrated Intel® UHD Graphics 620

Graphic Engine

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC
DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

DP/HDMI

DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)
DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz)

Ethernet

Speed

10/100/1000 Mbps
10/100/1000 Mbps

Audio

Chipset

Realtek ALC888S, High Definition Audio (HD)
Realtek ALC888S, High Definition Audio (HD)

Expansion

M.2

1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)
1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042)

Mini PCIe

1 x Full size Mini-PCIe
1 x Full size Mini-PCIe

Front I/O Interface

HDMI

USB

4x USB 3.0, 4x USB 2.0
4x USB 3.0, 4x USB 2.0

RJ-45

COM

2x RS-232/422/485
2x RS-232/422/485

Audio

2 (Line-Out, Mic-In)
2 (Line-Out, Mic-In)

DC Jack

SIM Card

1x Nano SIM
1x Nano SIM

Power Button

Miscellaneous

LED Indicators

2 (Power LED, HDD LED)
2 (Power LED, HDD LED)

Side I/O Interface

COM

2 (1 x RS-232/422/485, 1 x RS-232)
2 (1 x RS-232/422/485, 1 x RS-232)

DIO

CAN Bus

2 (Support CAN 2.0B at 1Mb/s)
2 (Support CAN 2.0B at 1Mb/s)

Antenna

Power

Input Voltage

12 VDC
12 VDC

Connector Type

Lockable DC Jack
Lockable DC Jack

Environment

Operational Temperature

With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330
With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)
-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

40 °C @ 95%, Non-Condensing
40 °C @ 95%, Non-Condensing

Physical

Mounting

Desk/ Wall Mount/ DIN Rail
